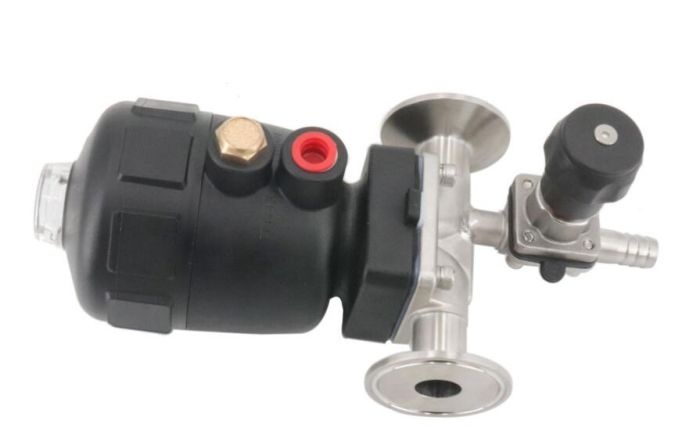

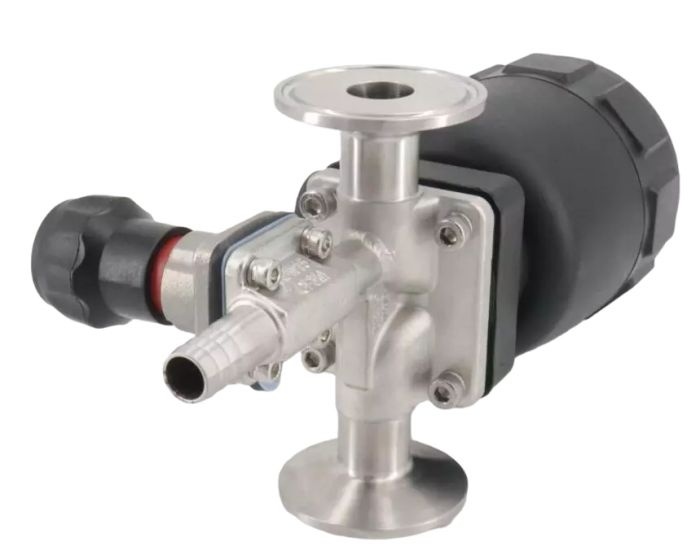

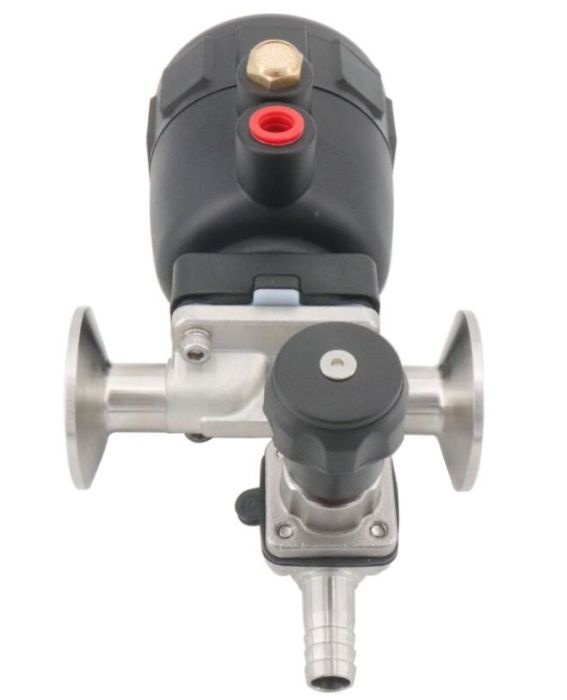

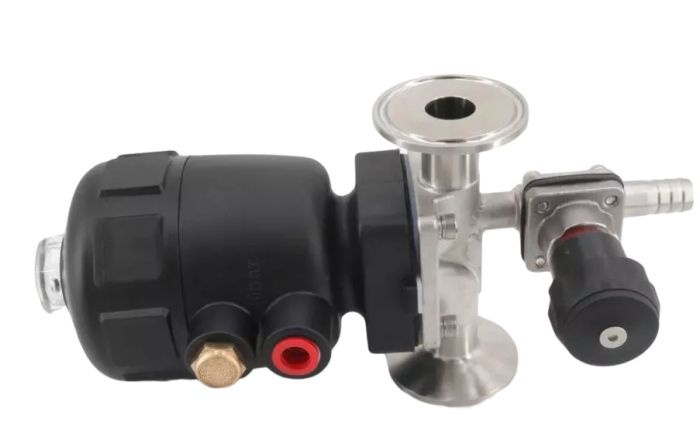

sanitary pneumatic sample diaphragm valve

sanitary pneumatic sample diaphragm valve

◆SIZE：1"-4"，DN25-DN100

Maximum temperature: - 20 to 150 ℃ (depending on diaphragm) (stainless steel actuator)

Maximum temperature: - 20 to 130 ℃ (depending on diaphragm) (plastic actuator)

Working pressure: normally closed rubber 8bar, PTFE 6bar (option)

Normally closed rubber 6bar, PTFE 4.5bar (standard)

Normally open and double acting rubber 8bar, PTFE 6bar

Different actuators can meet higher pressure level

Forging valve body: 1.4404/316l/1.4435 Nb2 Fe ≤ 0.5%

Casting valve body: 1.4404/316l

Connection mode: welding, quick installation, flange, thread, by any, etc

Valve body structure: straight through, tee, U-shaped tee, tank bottom valve, multi-channel diaphragm valve, etc

Membrane material: EPDM + PTFE (double layer) / EPDM / silicon / FPM (Viton)

Connection standard: 3A BPE DIN SMS IDF ISO
