Applicable temperature: < 120 ℃, < 150 ℃ (according to diaphragm material)



Pressure class: PN (MPA) 0.61.01.6



Valve body: stainless steel



Bonnet: stainless steel



Disc: stainless steel



Food grade diaphragm: Rubber



Stem: stainless steel



Handwheel: cast iron, stainless steel



Lining layer: EDM detection



Test and inspection according to bs6755



Nominal pressure: PN (MPA)



Valve body: PN × one point five



Seal: PN × one point one

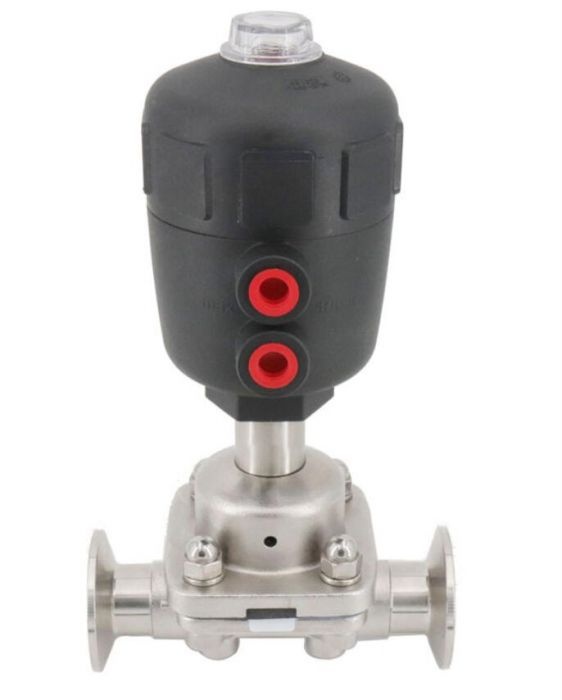

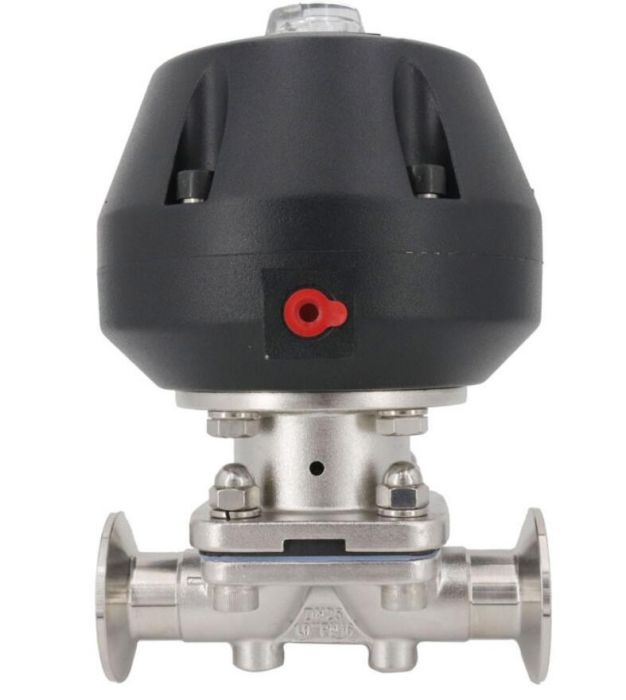

The pneumatic diaphragm valve and pneumatic actuator are composed of two parts. It takes compressed air as power, and regulates the flow rate of fluid medium in process pipeline. Because the valve body with corrosion resistant lining and corrosion-resistant diaphragm, packing free structure and throttle element are elastic diaphragm and valve body flow path are smooth, the pneumatic diaphragm valve has the advantages of small negative force, large flow, no leakage, convenience, reliability, fire and explosion-proof, and is widely used in industrial automation system, such as strong acid, strong alkali, strong corrosion, high viscosity, glume Flow regulation of the media with fibers and toxic and not fully polluted.
